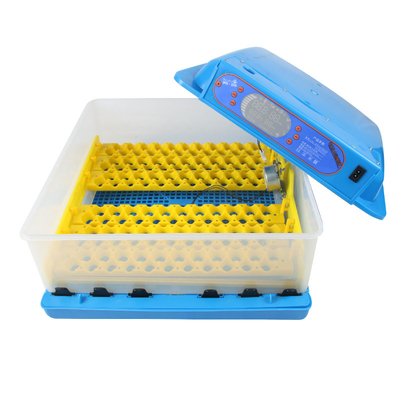

132 bird eggs automatic egg incubator and hatcher for chicken
Product Description :
The model incubator is designed newestly. Our engineer make it has the new functions that contains the Ultrosanic Humidifier to make this incubator has the function of humidifying automatically , and make it has an unique function called the filling water automatically with a kind of device called "automatic filling water box" . it can be equipted with four kinds of egg trays which includes the 36 chicken eggs tray , the 48 chicken eggs tray, the 56 chicken eggs tray, the 144 bird eggs tray, the 132 bird eggs tray. please note: the 36 chicken eggs tray and the 144 bird eggs tray are combined together to be one egg tray called " the multi-functional egg tray".
The above egg tray is called the flower basket chicken egg tray . It can hold 132 pieces of bird eggs, 132 pieces of pigeon eggs .
The above photo show you the sensors. it include the humidity sensor and the temperature sensor. What is the unique place is that there are two temperature probe. This design can make the incubator get the much more accurate temperature value. So this device can bring you a higher hatching rate.
The above photo is the middle fan that is equipped with the doule layer incubator. but its design's details have some merits: The outlet setted at the edge and around to avoid the direct wind to hurt the hatching eggs; the fan has
a bezel with a slope to make sure that the duct delivers the hot & humidity air more fully to every corner; The more evenly are the temperature&humidity, The higher is the hatching rate.
The above picture is the bottom cap with water channel which can make the water circulating well. There are two peculiarities : one is the Ultrosanic Humidifier , the other is the automatic filling water box. The two devices make
the humidity much more enough and evenly in a certain time.
The above photo is the Ultrosanic Humidifier. This device can help the incubator get humidity easily with the help of the heating line.
The above photo is the smart controller. It is a liquid crystals and intelligent controller (or call it screen). It can work in multiple modes which contains the chicken eggs modes, the duck eggs modes, and the bird eggs modes etc when
you are incubating the chickens , ducks and the birds with this incubator.
The above photo show you that this incubator can work on the DC 12V electriciy with a suitable inverter. (The inverter will be sold here except the battery.)
The Incubating Parameters:
I) Incubating Days and Parameter table in the Chicken Egg Mode:
| Incubating Days | 1-6 days | 7-12 days | 13-18 days | 19 days and later on |
| Temperature Parameters | 38.0 ℃ | 37.8 ℃ | 37.6 ℃ | 37.2 ℃ |
| Egg Turning Parameters | 1.5 | 1.5 | 1.5 | No Egg Turning |
II) Incubating Days and Parameter table in the duck(turkey) egg Mode:
| Incubating Days | 1 day | 2-3 days | 4-20 days | 21*-25 days | 26 days and later on |
| Temperature Parameters | 38.3 ℃ | 38 ℃ | 37.8 ℃ | 37.5 ℃ | 37.2 ℃ |
| Egg Turning Parameters | 1.5 | 1.5 | 1.5 | 1.5 | No Egg Turning |
III) Incubating Days and Parameter table in the goose egg Mode:
| Incubating Days | 1 day | 2 days | 3 days | 4-21 days | 22-28 days | 29 days and later on |
| Temperature Parameters | 38.5 ℃ | 38.3 ℃ | 38.0 ℃ | 37.8 ℃ | 37.5 ℃ | 37 ℃ |
| Egg Turning Parameters | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | No Egg Turning |
IV) Incubating Days and Parameter table in the Duck egg Mode:
| Incubating Days | 1-2 days | 3-5 days | 6-9 days | 10-11 days | 12-15 days | 16 days and later on |
| Temperature Parameters | 38.2 ℃ | 38.0 ℃ | 37.8 ℃ | 37.5 ℃ | 37.2 ℃ | 37 ℃ |
| Egg Turning Parameters | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | No Egg Turning |
v) Bird & Poultry Incubating Parameters:
| Name | Hatching Days | Period for Incubationg | Period for Hatching | Weight for eggs | ||
| Temperature (+-0.5℃) | Humidity (%) | Temperature (+-0.5℃) | Humidity (%) | G/piece | ||
Chicken | 21 | 37.6 | 55-70 | 37.5 | 65-85 | 50-60 |
Peacock | 28 | 37.6 | 60-75 | 37.3 | 65-85 | 100-120 |
| Turkey | 28 | 37.6 | 60-75 | 37.2 | 65-85 | 75-80 |
| Duck | 28 | 37.8 | 60-75 | 37.3 | 65-85 | 80-100 |
| Goose | 30 | 37.6 | 65-80 | 37.1 | 65-85 | 100-120 |
| Pigeon | 18 | 38 | 55-70 | 37.8 | 65-85 | 30-40 |
| Pheasant | 24 | 37.8 | 55-70 | 37.7 | 65-85 | 30-40 |
| Native Chicken | 21 | 37.6 | 55-70 | 37.5 | 65-85 | 45-55 |
